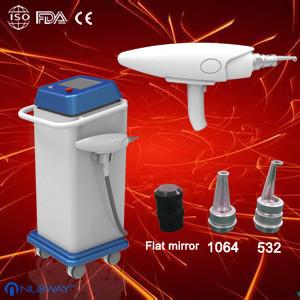

2014 hottest selling Q Switched Nd yag Laser machine for tattoo removal

Advantage

1, America imported laser bar

2, 3 years warranty and lifetime free service

3, 24 hours continue working

Theory of operating:

The Q-switched ND: YAG laser delivers light of specific wavelengths with high energy which are absorbed by the pigment in the tattoo and result in a shockwave. The shockwave shatters the pigment particles, releasing them from their encapsulation and breaking them into fragments small enough for removal by the body. These tiny particles are then eliminated by the body. Since this specific wavelength can only be absorbed by pigment particles, no injury to skin and normal tissues will occur.

Tattoo removal treatment picture

Application:

A. Removal endogenous pigment: Nevus of Ota, coffee spot, age pigment, freckle etc

B. For exogenous pigment: Tattoo of body, eyeline and eyebrow.
C. Skin whitenning
D. Remove striae gravidarum.

Before after pictures:

Basic parameter:

1,Physical demension(L×W×H,mm):400×380×800

2,Total weight:25kg;

3,Consumed power:800W;

4,creepage protectingrated current

5,Laser output method:Pulse adjusting Q

6,working Laser wavelength:1064nm;532nm

7,Laser pulse wideth:8ns±2ns;

8,Output frequency:1Hz,2Hz,3hz 4hz 5Hz;6hz

9,Single pulse max output energy:100-2000mJ;

10,Harmed eyes distance:NOHD 1km,operated in dense need wear eyeshield!

11,cooling method:Inlay closed cirlced water

12,Run Mode:Dwell load-on continuious running

13,Flare continuious adjusted
